Product Code
MBHF

Features

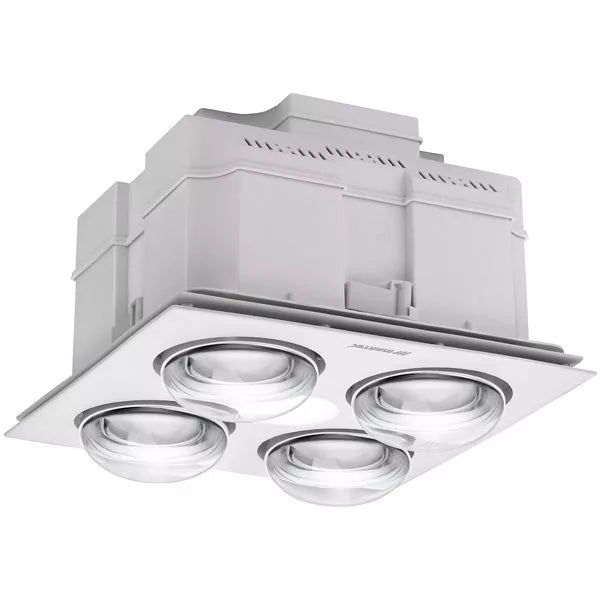

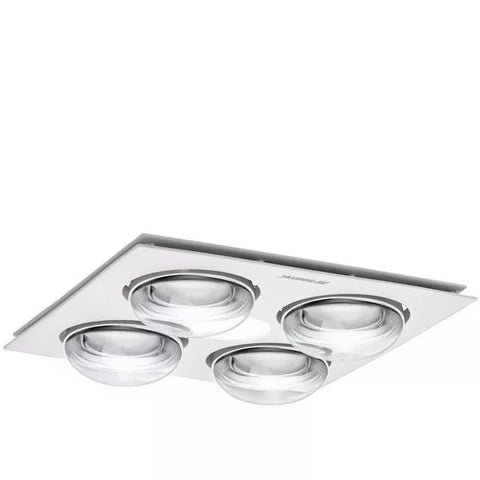

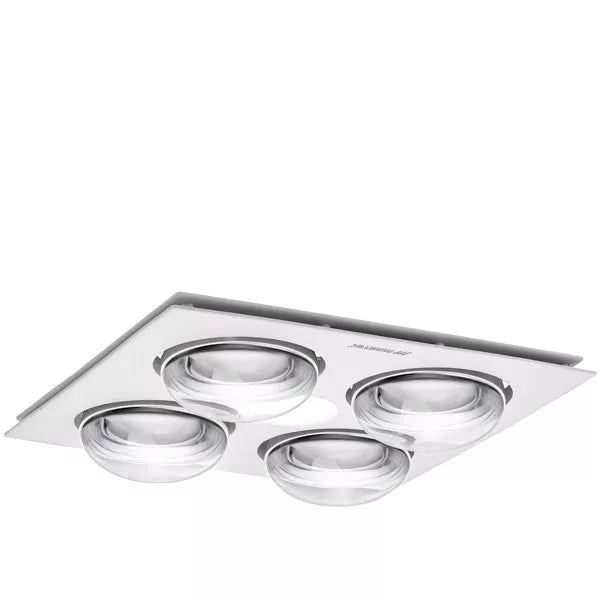

Forme 4 features a slim profile that is ideal for all contemporary bathroom design. It comes complete with 4x 275w or 2x 275w infrared heat lamp to any bathroom that requires instant heat.

• Low profile design to suit any small to medium bathroom application
• PP plastic housing with polycarbonate (PC) fascia
• Built in thermal overload protection
• Back draft stopper included
• Half heat function
• Cut-out template included
• Compatible with Martec bathroom remote MBHREM (not included)
• Colour White
  Air Extraction (m³/hr) 300 m³/hr
  Power Wattage 45W
  Voltage 220-240V 50Hz
  Material PP plastic housing
  Cutout size (mm) 4 Heat Lamps 320 x 320mm or 2 Heat Lamps 375mm x 202mm
  Decibel Rating ≤40dB
  IP Rating IPX4
  Heating Wattage / Type
  4x 275W heat lamps
• Lighting Wattage / Type 10W LED
  Colour temperature 3000K / 4000K / 5000K
  Lumens Output 600lm / 725lm / 700lm
  Minimum Ceiling Depth 200mm
  Ducting Size 125mm
  Accessories Included 1x 1.5m duct, 2x ducting clips, 1x external grille, 1x 4 gang switch, 4x heat lamps
• 2 years in-home warranty

Dimensions
4 Heat Lamps: 407.3mm x 340mm Depth 205mm Cut-out 320mm x 320mm

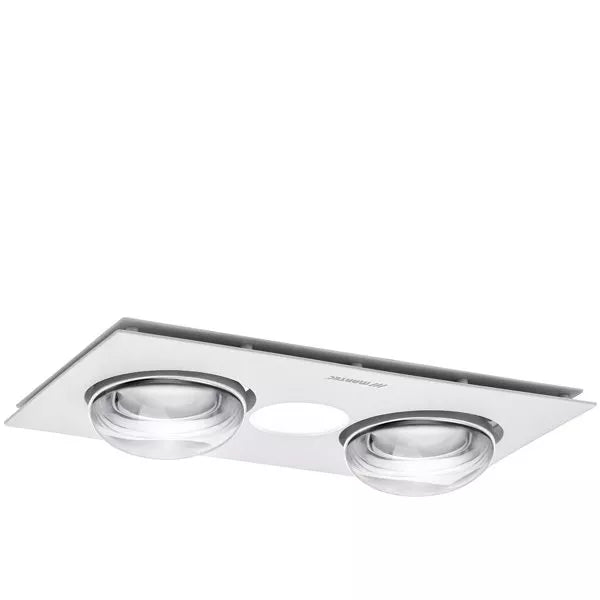

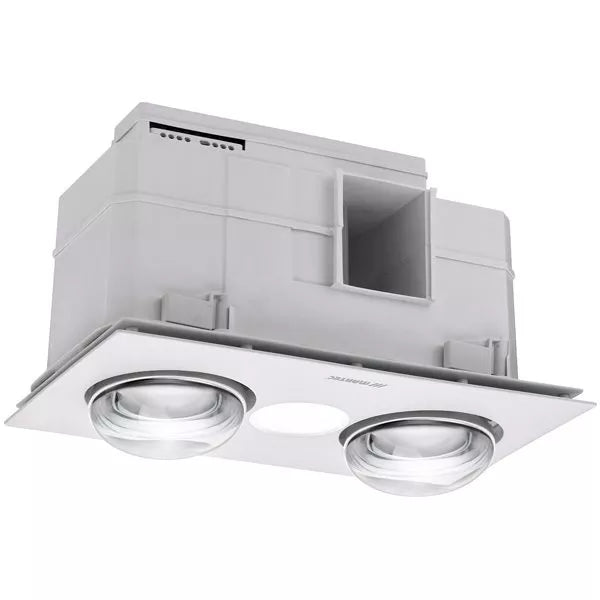

2 Heat Lamps: 386mm x 215mm Depth 200mm Cut-out 375mm x 202mm

Colour / Finish
Matt White

Globe

4 or 2 Heat Lamps 1 10W Tri-colour LED
