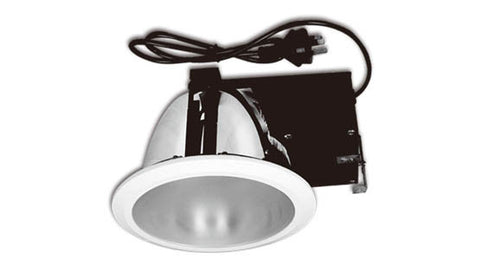

S9608 2x26W AVON PL DOWNLIGHT - TEMPERED GLASS COVER

Product Code
S9608-226FG

Product Description
Recessed Compact Fluorescent Fitting

Features
- Die cast aluminium body powder coated finish
- High efficiency aluminium reflector
- Electronic ballast
- High power factor
- Instant start, flicker and noise free
- Automatic switch off if lamp is defective
- Automatic switch on after lamp replacement
- 1.2M FLEX & PLUG fitted
- 2700K lamps included

Installation Type
- Recessed

Application
- General commercial applications

Options
- Analogue or digital dimming

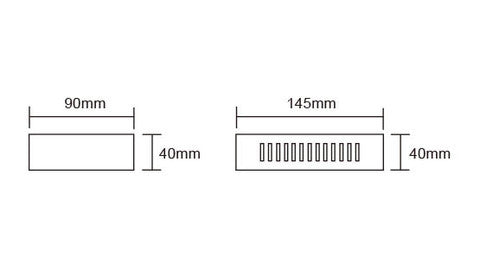

- Gear box size: 145x90x40mm

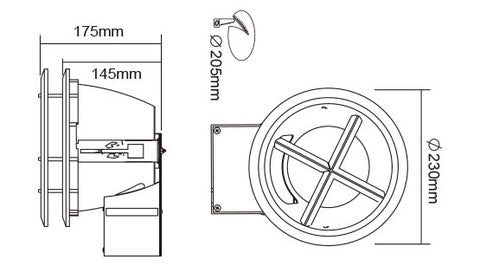

Dimensions
ø: 230mm H: 145mm
cutout ø: 205mm

Technical Specifications

Model Number	Light Source	Luminous Flux	Face Cover
S9608/218 FG	GX24q-2 2x18W	2400LM	Tempered Glass
S9608/226 FG	GX24q-3 2x26W	3600LM	Tempered Glass
S9608/218 CL	GX24q-2 2x18W	2400LM	Cross Louvre
S9608/226 CL	GX24q-3 2x26W	3600LM	Cross Louvre
S9608/218 DR	GX24q-2 2x18W	2400LM	Deco Top
S9608/226 DR	GX24q-3 2x26W	3600LM	Deco Top
S9608/218 OP	GX24q-2 2x18W	2400LM	Open
S9608/226 OP	GX24q-3 2x26W	3600LM	Open
